Evgenia Karoki
5th Junior High School of Drama
GREECE
💗
Lamp of my dreams in my room
&
Automatic lighting of an outdoor light when someone approaches.
1st Required Circuit
Arduino, RGb led, 3 Potentiometers
2nd Required Circuit
Arduino, Led, Buzzer, Distance Ultrasonic Sensor
Construction of Home
Utrasonic Sensor
3 potentiometers
Outdoor light
Changing the color with the turning of the potentiometers!😍
When the person approaches the house the light turns on automatically!
🚶♂️
The light turns on
Teamwork
Turkey
Earthquake warning system
My students designed a house using Tinkercad. We printed it with a 3D printer.
The exterior design of the house was prepared.
They prepared a circuit with a buzzer and a ball sensor.
They have completed the connection and coding.
In this way, they prepared a circuit that gives an audible warning when vibration is felt underground.
Turkey
FOR THE HOME WHEN IT RAINS, FINDING SOLUTIONS TO THE PROBLEMS THAT ARISE.
Problems we want to find solutions for: 1- In the fall, tomato paste is dried for the winter. It should not rain on tomato paste. 2- Laundry we hang to dry in the open air gets wet in the rain. 3- Contamination of the windows of the house in the rain. Solutions: Solution of 1st and 2nd problem- The rain sensor warns people at home with sound and light when it detects rain. 3- When it rains a wiper will wipe the windows of the house. Like windshield wipers in cars. Whenever we want, I can operate the windows of the house independently of the rain by pressing the button.
It notifies with sound and light that it is raining. He wipes the windows of the house.
Mehmet Ragıp ÖZDEMİR
Sütveren Secondary School Halfeti/Şanlıurfa
TÜRKİYE
Curtain and lamp that opens and closes according to sunlight.
Materials: Ldr, servo motor, arduino, resistor
Tinkercad Block Coding
Tinkercad block coding.
First, we control the light with the LDR resistor.
Now it's time to check:
If the light level is low, turn on the lamp and close the curtain.
If the light level is not low, turn off the lamp and open the curtain.
Wait a second and check again.
LDR (Light Dependent Resistor)
LED diode and Servo motor (for Curtain )
We stopped hiding LDR well. So it got light. He opened the curtain and turned off the LED.
Assembly

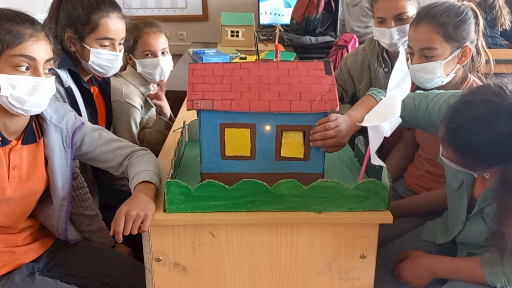

Here is the latest version of our Smart Home.
When the light is on, the curtain is open and the LED is off.
When there is no light, the curtain is closed, the led is on.
ÖZCAN ŞEN
DERECİK ŞEHİT YASİN BOY SECONDARY SCHOOL
Lighted door ornament
Materials : Arduino Uno, led, resistor
Tinkercad Design

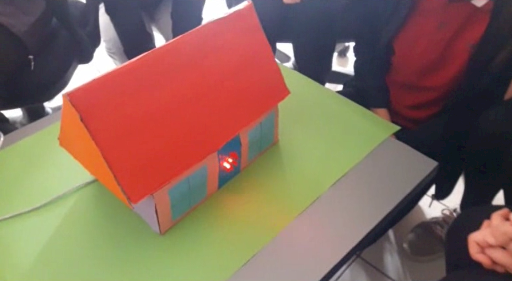

The project is completed
D. João II School, Santarém | Portugal
Our smart home: Distance sensor with bell and light (outdoor), flashing lights at the head of the bed (inside).

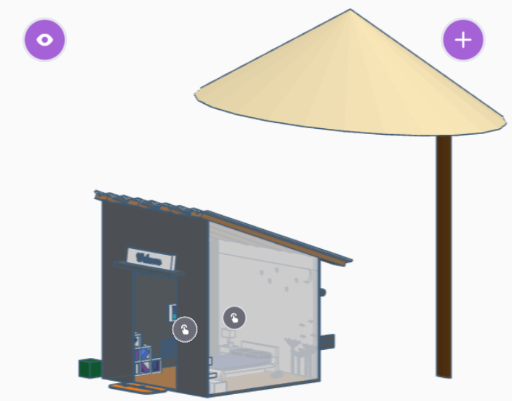

Draft our smart house
For the construction of the smart home was used: paper box, wooden sticks, wool yarn and rope, acetate, plastic bottles, paints and other waste.

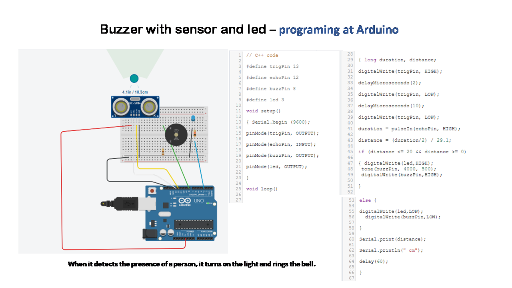

1st Required circuit: Arduino, Led, Buzzer, Distance ultrasonic sensor

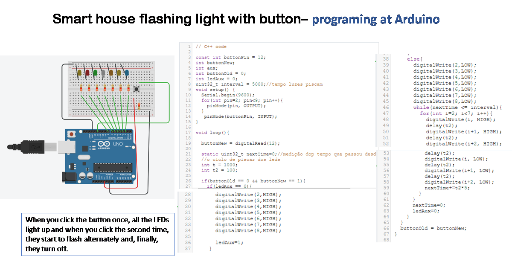

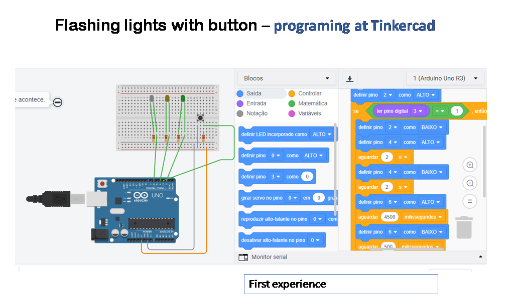

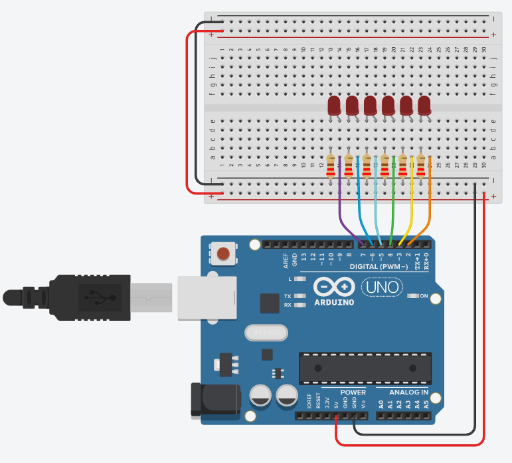

2nd Required circuit: Arduino, 7 Leds, Button
2nd Required circuit: Arduino, 7 Leds, Button
Building... and making the connections.
Our smart home.
This house was built with waste, recycling materials we found at school.
It is a modern house, the roof is a solar panel that aims to provide enough energy for lighting the house and heating the water.
At the house entrance.
When it detects the presence of a person, it turns on the light and rings the bell.
Inside the house, at the head of the bed...
When you click the button once, all the LEDs light up and when you click the second time, they start to flash alternately and, finally, they turn off.
It was our first experience and we really enjoyed it.

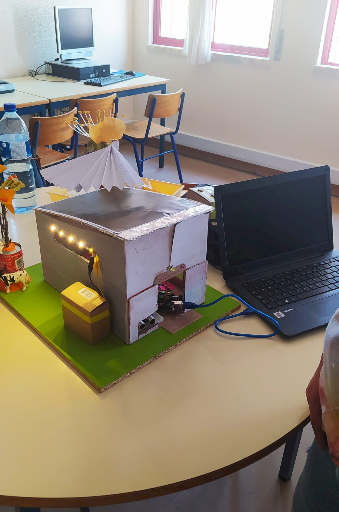

Our smart house...
The entire team celebrated the 1st Arduino experience.
