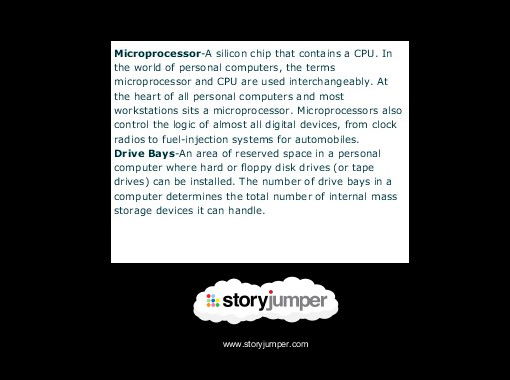

Microprocessor-A silicon chip that contains a CPU. In

the world of personal computers, the terms

microprocessor and CPU are used interchangeably. At

the heart of all personal computers and most

workstations sits a microprocessor. Microprocessors

also control the logic of almost all digital devices, from

clock radios to fuel-injection systems for automobiles.

Drive Bays-An area of reserved space in a personal

computer where hard or floppy disk drives (or tape

drives) can be installed. The number of drive bays in a

computer determines the total number of internal mass

storage devices it can handle.

Motherboard-The main circuit board of a

microcomputer. The motherboard contains the

connectors for attaching additional boards.

Modem-A modem (modulator-demodulator) is a device

or program that enables a computer to transmit data

over, for example, telephone or cable lines.

Power Supply-Also called a power supply unit or PSU,

the component that supplies power to a computer. Most

personal computers can be plugged into standard

electrical outlets.

Sound Card-An expansion board that enables a

computer to manipulate and output sounds. Sound

cards are necessary for nearly all CD-ROMs and have

become commonplace on modern personal computers.

Video Card-Converting analog video signals, such as

those generated by a video camera, into a digital format

and then storing the digital video on a computer's   mass

storage device. Video capture from analog devices

requires a special video capture card that converts the

analog signals into digital form and compresses the data.

Power Cables-A power cable is an assembly of one or

more electrical conductors, usually held together with an

overall sheath. The assembly is used for transmission of

electrical power.

Expansion Slots-An opening in a computer where a

circuit board can be inserted to add new capabilities to

the computer. Nearly all personal computers except

portables contain expansion slots for adding more

memory, graphics capabilities, and support for special

devices.

3.5 Drive Bay-It is important to note that the name

does not refer to the width of the bay itself, but rather to

the width of the disks used by the floppy drives which

mounted in these bays. Often represented as 5.25-inch.

5.25 Drive Bay-Of course, most of today's

computers—especially laptops—don't come with floppy

drives at all since CD/DVD-RW drives are very common.

There are adapters, sometimes called a "sled", which can

be used to mount a 3.5″ device in a 5.25″ bay. Often

represented as 3½-inch.

IDE Cables-Parallel ATA (PATA), originally AT

Attachment, is an interface standard for the connection

of storage devices such as hard disks, floppy drives, and

optical disc drives in computers. The standard is

maintained by X3/INCITS committee.

AGP Slot -Short for Accelerated Graphics Port, an

interface specification developed by Intel Corporation.

AGP is based on PCI, but is designed especially for the

throughput demands of 3-D graphics.

I/O Ports-Short for input/output (pronounced "eye-

oh"). The term I/O is used to describe any program,

operation or device that transfers data to or from a

computer and to or from a peripheral device.

RAM-RAM (pronounced ramm) is an acronym for

random access memory and is the most common type of

memory found in computers and other devices, such as

printers.

PCI Slot-An I/O interconnect bus standard (which

includes a protocol and a layered architecture) that

expands on and doubles the data transfer rates of

original PCI. PCI Express is a two-way, serial connection

that carries data in packets along two pairs of point-to-

point data lanes, compared to the single parallel data

bus of traditional PCI that routes data at a set rate.

ISA Slot-PCI slots were the first physically incompatible

expansion ports to directly squeeze ISA off the

motherboard. At first, motherboards were largely ISA,

including a few PCI slots.

Case Speakers-An electro-acoustic transducer that

converts electrical signals into sounds loud enough to be

heard at a distance. Synonymous with loudspeaker.

Case Fan-A computer fan is any fan inside, or attached

to, a computer case used for active cooling, and may

refer to fans that draw cooler air into the case from the

outside, expel warm air from inside, or move air across a

heat sink to cool a particular component.

Memory Sockets-Internal storage areas in the

computer. The term memory identifies data storage that

comes in the form of chips, and the word storage is used

for memory that exists on tapes or disks.

Front Panel Connector Cable-Alternatively referred to

as the fpanel or front panel connector, the system panel

connector is what controls the computer's power button,

reset button and LED's found on the front bezel of a

computer using the system panel cables.

Case-Short for Computer Aided Software Engineering, a

category of software that provides a development

environment for programming teams. CASE systems

offer tools to automate, manage and simplify the

development process.

Memory-Refers to physical memory that is internal to

the computer. The word main is used to distinguish it

from external mass storage devices such as disk drives

BIOS- Acronym for basic input/output system, the built-

in software that determines what a computer can do

without accessing programs from a disk. On PCs, the

BIOS contains all the code required to control the

keyboard, display screen, disk drives, serial

communications, and a number of miscellaneous

functions

DIMM Sockets-Short for dual in-line memory module, a

small circuit board that holds memory chips. A single in-

line memory module (SIMM) has a 32-bit path to the

memory chips whereas a DIMM has 64-bit path.
