Definition: A network is a group of computers connected together in a way that allows information to be exchanged between the computers.

Computer Network

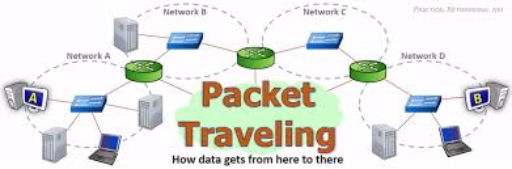

Definition: A piece of a message transmitted over a packet-switching network. One of the key features of a packet is that it contains the destination address in addition to the data.

Packet

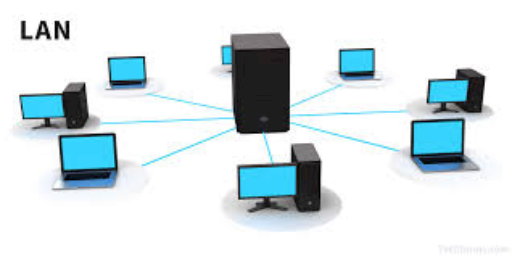

Definition: Local area network (LAN) technologies connect many devices that are relatively close to each other, usually in the same building. The library terminals that display book information would connect over a local area network.

Local Area Network (LAN)

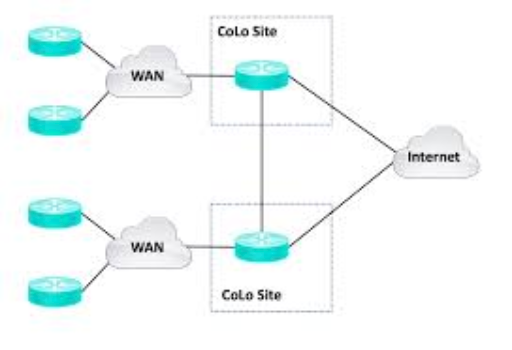

Definition: Wide area network(WAN) technologies connect a smaller number of devices that can be many kilometers apart.

Wide Area Network (WAN)

Definition:  A node is anything that is connected to the network. While a node is typically a computer, it can also be something like a printer or CD-ROM tower.

Node

Media Access Control

Definition: This is the physical address of any device -- such as the NIC in a computer -- on the network. The MAC address, which is made up of two equal parts, is 6 bytes long. The first 3 bytes identify the company that made the NIC. The second 3 bytes are the serial number of the NIC itself.

IP Adress

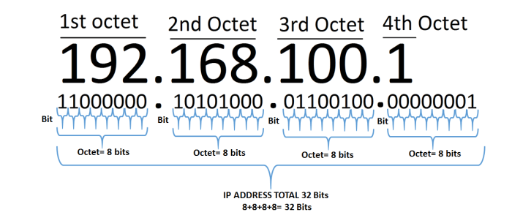

Definition: IP address is short for Internet Protocol (IP) address. An IP address is an identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route messages based on the IP address of the destination. Contrast with IP, which specifies the format of packets, also called datagrams, and the addressing scheme.

Definition: Each node is daisy-chained (connected one right after the other) along the same backbone, similar to Christmas lights. Information sent from a node travels along the backbone until it reaches its destination node. Each end of a bus network must be terminated with a resistor to keep the signal that is sent by a node across the network from bouncing back when it reaches the end of the cable.

Bus Topology

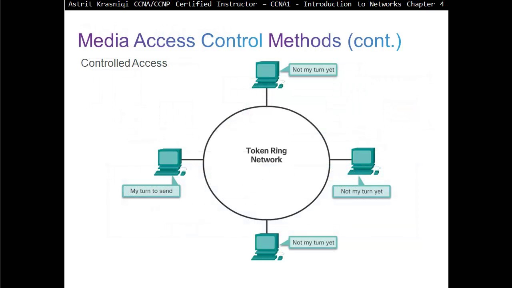

Definition: A token is a special series of bits that travels around a token-ring network. As the token circulates, computers attached to the network can capture it. The token acts like a ticket, enabling its owner to send a message across the network. There is only one token for each network, so there is no possibility that two computers will attempt to transmit messages at the same time.

Network Token

Definition: In a star network, each node is connected to a central device called a hub. The hub takes a signal that comes from any node and passes it along to all the other nodes in the network. A hub does not perform any type of filtering or routing of the data. It is simply a junction that joins all the different nodes together.

Star Topology

Tree Topology

Definition: A tree topology combines characteristics of linear bus and star topologies. It consists of groups of star-configured workstations connected to a linear bus backbone cable.

Protocol

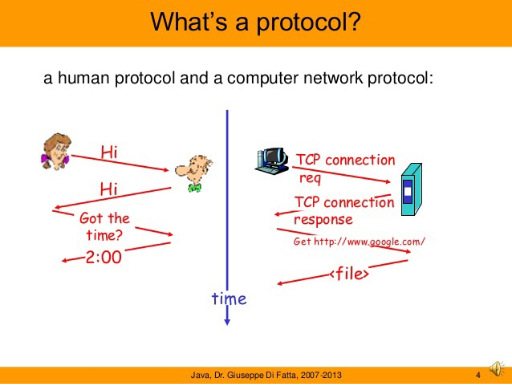

Definition: An agreed-upon format for transmitting data between two devices.

Definition: Often referred to simply as peer-to-peer, or abbreviated P2P, a type of network in which each workstation has equivalent capabilities and responsibilities. This differs from client/server architectures, in which some computers are dedicated to serving the others. Peer-to-peer networks are generally simpler, but they usually do not offer the same performance under heavy loads.

Peer-Peer Architecture

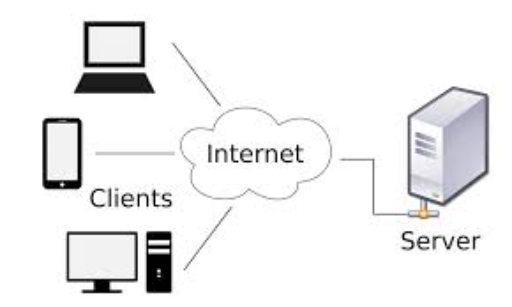

Definition: Client-server architecture (client/server) is a network architecture in which each computer or process on the network is either a client or a server.

Client/Server Architecture
